| Place of Origin: | China |
|---|---|
| Brand Name: | Snaitmedical |
| Certification: | CE, FDA |
| Model Number: | YB55 |
| Minimum Order Quantity: | 2000/pcs |
| Price: | Negotiate |
| Packaging Details: | Packing: 50pcs/pouch, 2000pcs/carton, |
| Delivery Time: | 5-8days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100000 per month |
| Dimensions: | Φ55mm | Shape: | Around |
|---|---|---|---|
| Conductive Gel:: | Solid Gel | Size: | Adult |
| Color: | White | Type: | General Medical Supplies,ecg Electrode |
| Material: | Non-woven Fabric/Foam | Product Name: | ECG ELECTRODE ADULT |

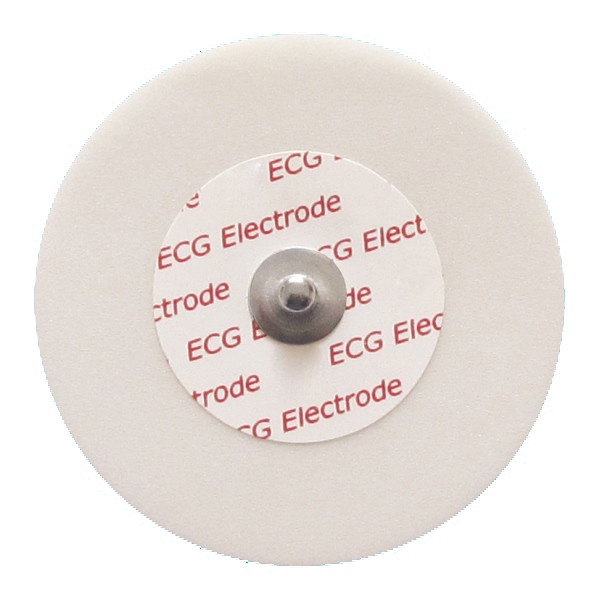

It is applicable to the clinical electrocardiography inspect and dynamic & static electrocardiography monitoring of patients suffering from heart disease in the hospital. It uses Ag/AgCl as sensing element and hydro-gel as adhesive element. Those elements are very suitable for improving their sensitivities. Hydro-gel has an advantage of minimizing the movement artifact by increasing the adhesive force between the skin and the sensing element.
Description:
● Suitable for normal ECG monitoring, Stress test, Holter(DCG) etc.
● Ag/AgCl sensor and medical conductive gel make the wave of cardiogram clearer.
● Non-woven or PE Foam backing material and high quality medical pressure sensitive adhesive
● Good adhesive character and won't cause sensitivity for long time use
|
Code |
Details: |
|
YB55 |
Conductive Gel: Solid gel |
|
Backing: Non-woven |
|
|
Shape: Round |
|
|
Dimensions: Φ55mm |
|
|
Size: Adult |
|
|
Packing: 50pcs/pouch, 2000pcs/carton, |
|
|
Carton size: 50×25×23cm, |
|
|
G.W/N.W.: 3.0/ 2.5kg /carton. |
Features :
Meet EU Standard;
OEM is OK;
Apply for: Adult, Children, Baby ;
Gel: Solid gel;
Backing: non-woven/PE foam
Shape: round, drop-like, oval
Characteristics:
1.Air permeable backing with high-quality medical pressure sensitive gel, even sweaty on summer, our ECG Electrode still attaches to skin firmly and no sensitivity for long time using.
2.Ag/Agcl sensor harmonies with medical conductive gel makes wave of cardiogram clearer.
3.Solid conductive gel with character of good adhesive, will not easy become dry under long shelf-time, without remnant after peeling off.
4.Non-irritating; Non-sensitizing; Non-cytotoxic to the skin.
Term of validity: Two years
We design and manufacture a full line of high quality ECG electrodes. We specialize in producing ECG electrodes in various shapes, sizes and material to meet different needs of our valuable customers. We also offer Private Label Programs or OEM for a wide variety of products.
